[car home Technology] I don’t know if everyone in front of the screen knows anything about the 100,000-class pure electric compact car. As far as the author is concerned, the competition of this class of cars is actually quite fierce. On the one hand, it is a price war, on the other hand, it is repeatedly involved in design, safety and configuration. In this class of cars, (|) successfully circled the powder with its retro and beautiful shape. Of course, we don’t talk about design today, but look at the scientific and technological strength behind this boutique car through actual disassembly.
● Five-ring body frame

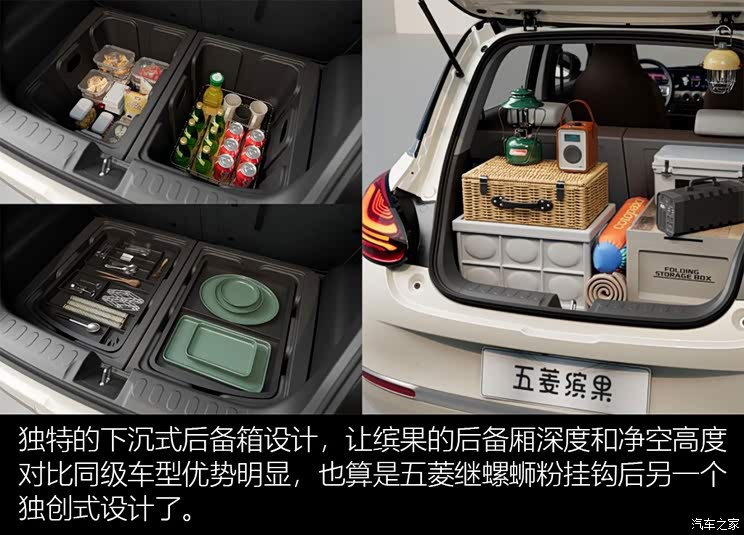

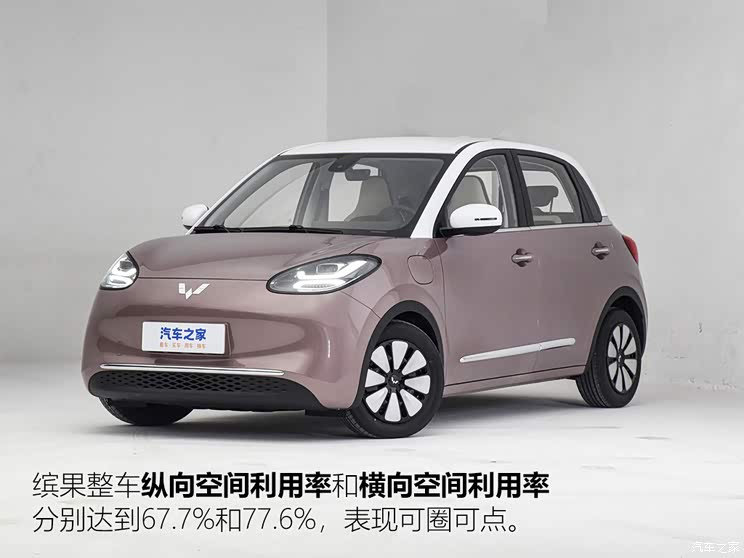

The length, width and height of Wuling Binguo are 3950*1708*1580mm respectively, and the wheelbase is 2560mm. Thanks to its front-drive pure electric platform technology, the cabin space utilization can be maximized.

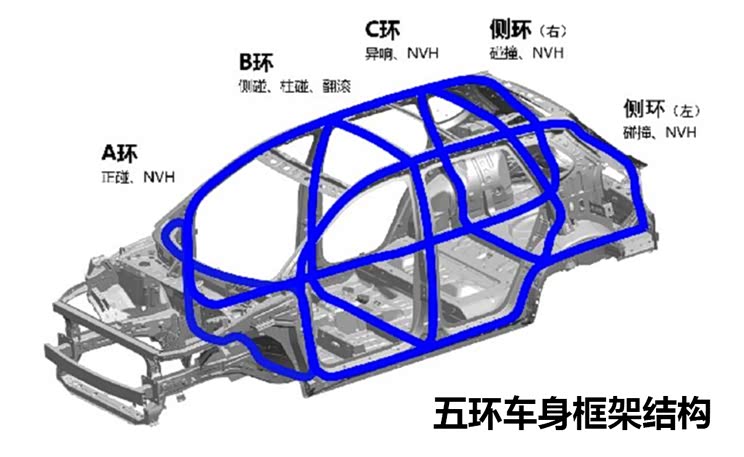

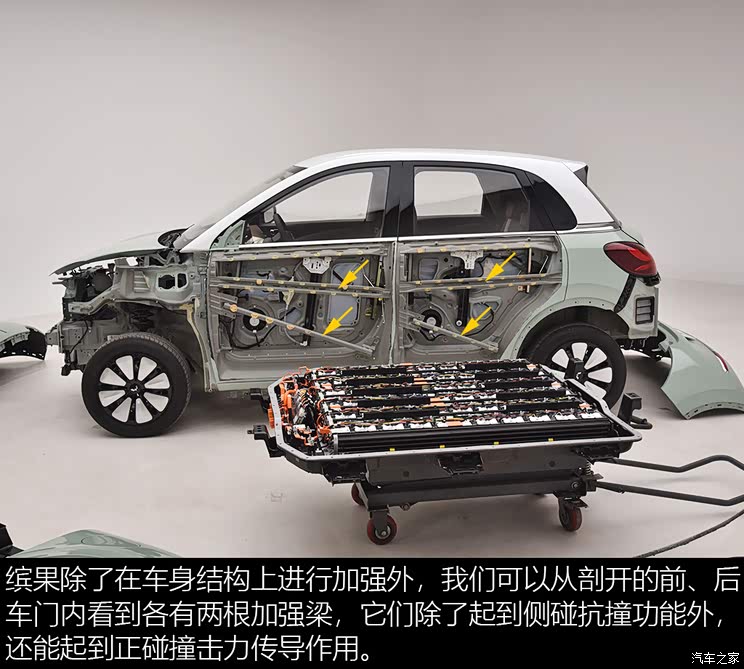

For small cars, consumers are not only concerned about the performance of their cabin space, but also extremely concerned about their safety. Binguo adopts a five-ring car body frame structure, which can increase the rigidity of the car body and improve NVH performance, and at the same time, it can quickly transfer collision energy when a collision occurs, reduce the intrusion of the passenger compartment and protect the safety of the passengers.

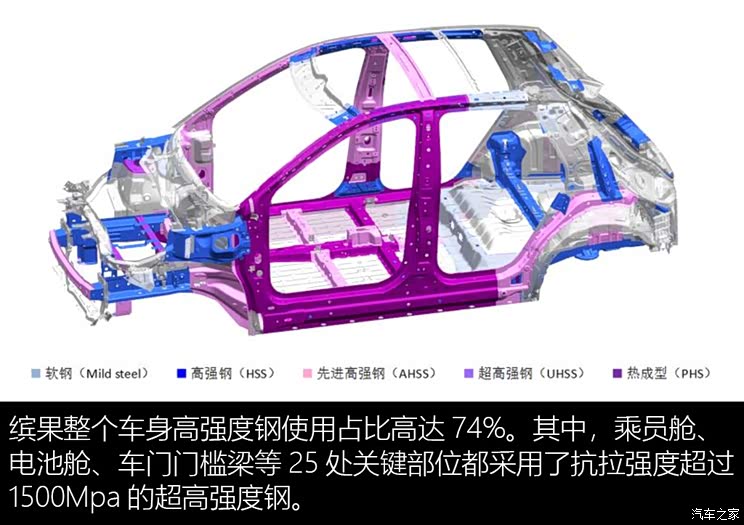

The A-pillar, B-pillar and sill beam constitute the thermoformed steel door ring, which can bear higher pressure and improve the torsional stiffness and safety of the car body. At the same time, the steel door ring of hot car can also improve the sealing performance and torsional stiffness of the car body, improve NVH performance and enhance ride comfort.

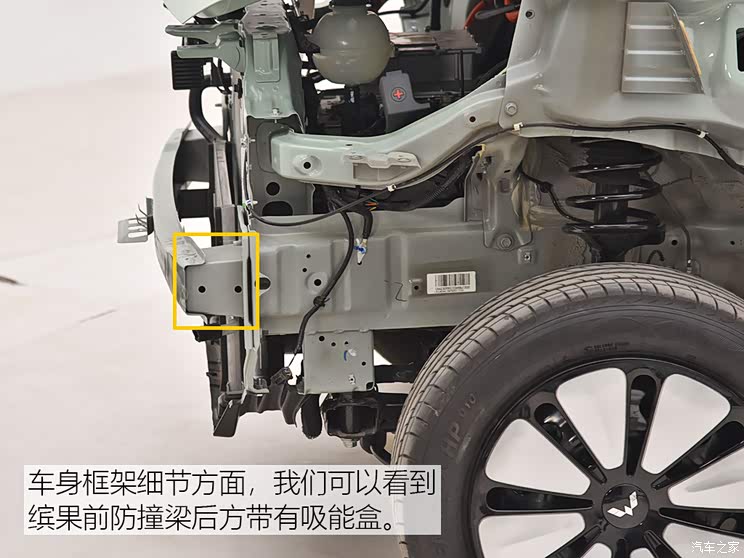

The energy-absorbing box can reduce the maintenance cost of low-speed (20-30km/h) impact, because the energy-absorbing function of the energy-absorbing box can avoid the damage of the longitudinal beam, and the damaged energy-absorbing box can be replaced separately.

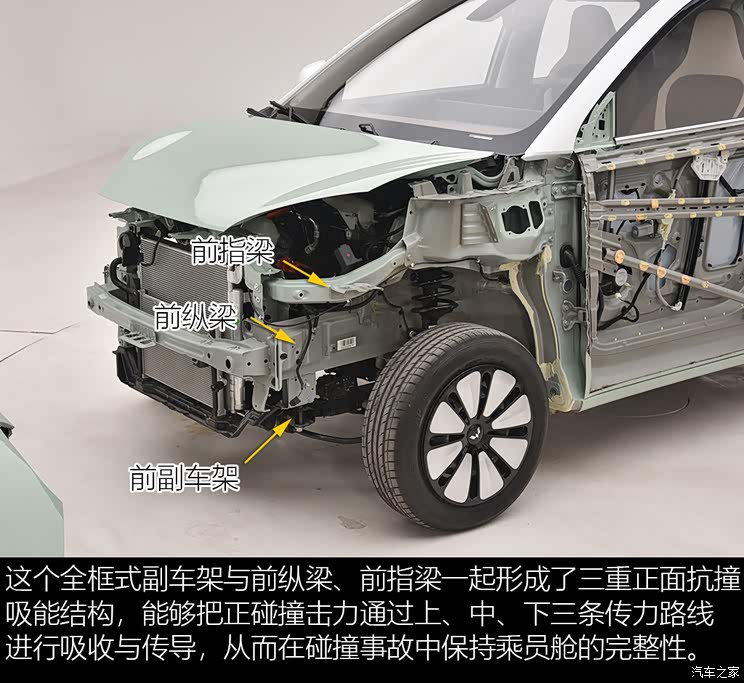

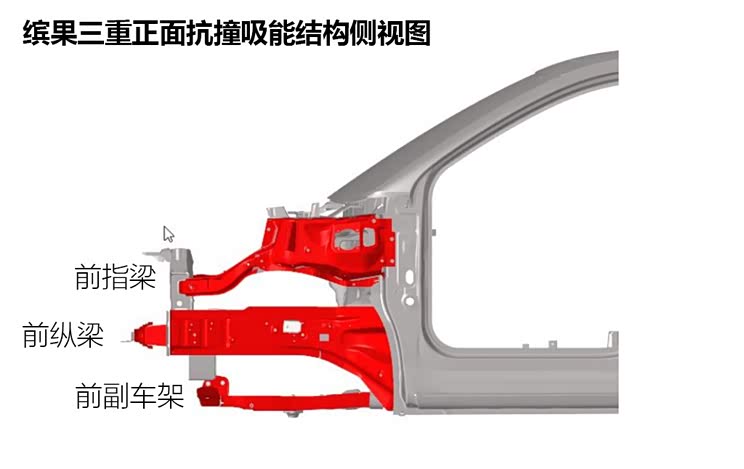

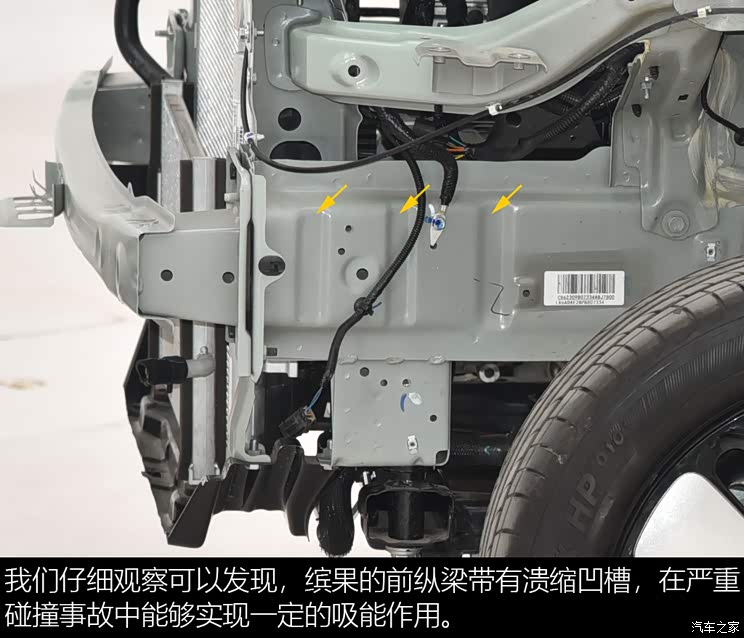

According to official data, compared with the design of only the front finger beam and the front longitudinal beam, the triple frontal collision-resistant energy-absorbing structure design of Binguo can achieve a 15% improvement in energy absorption efficiency.

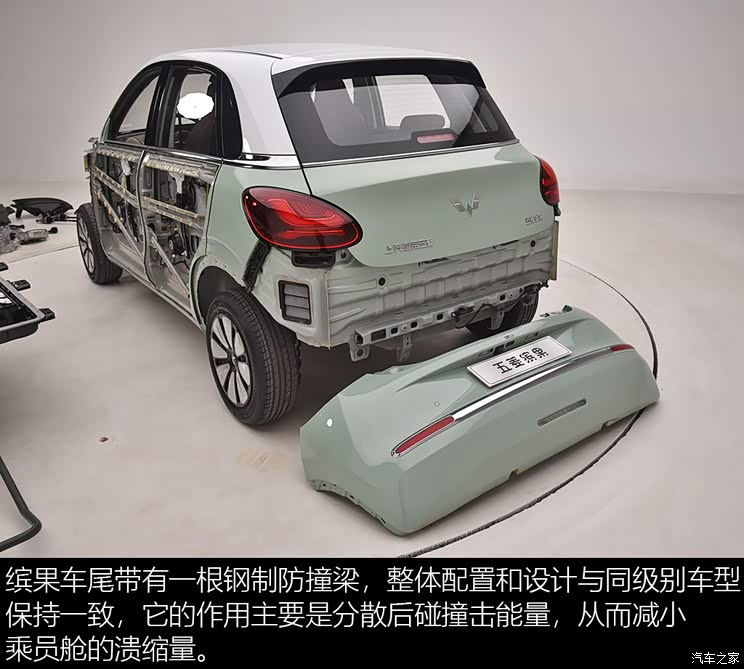

There is also a steel anti-collision beam at the rear of Binguo, but there is no energy-absorbing box between it and the body. Even so, the existence of the anti-collision beam can disperse the impact energy of the rear collision, thus reducing the damage degree of the rear collision accident to the vehicle.
● Robust chassis

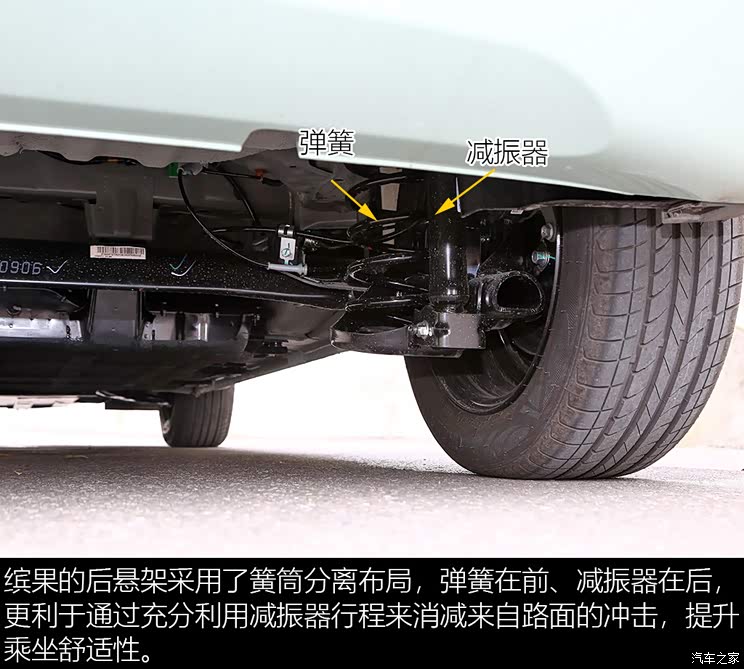

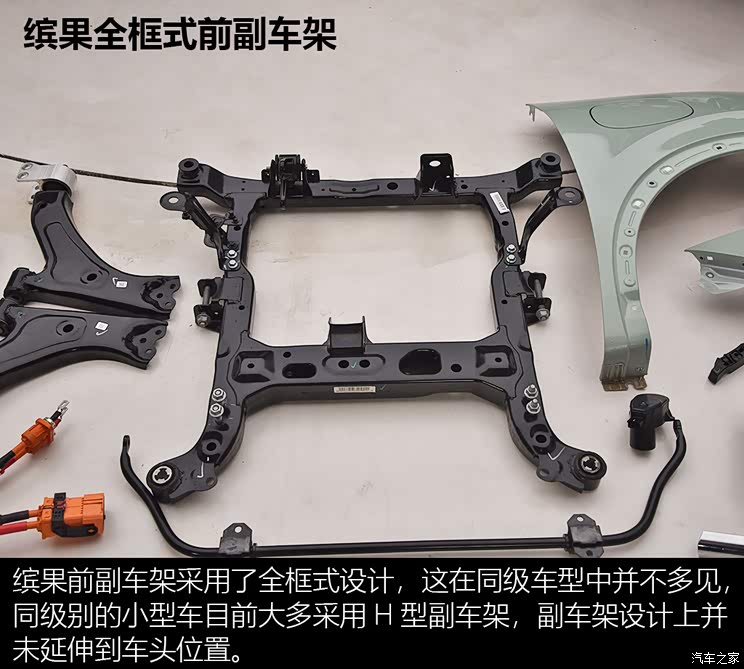

Binguo adopts the suspension combination of front McPherson and rear torsion beam, which is common at the same level. Simple structure, durable leather and low manufacturing cost are a major feature of this suspension form.

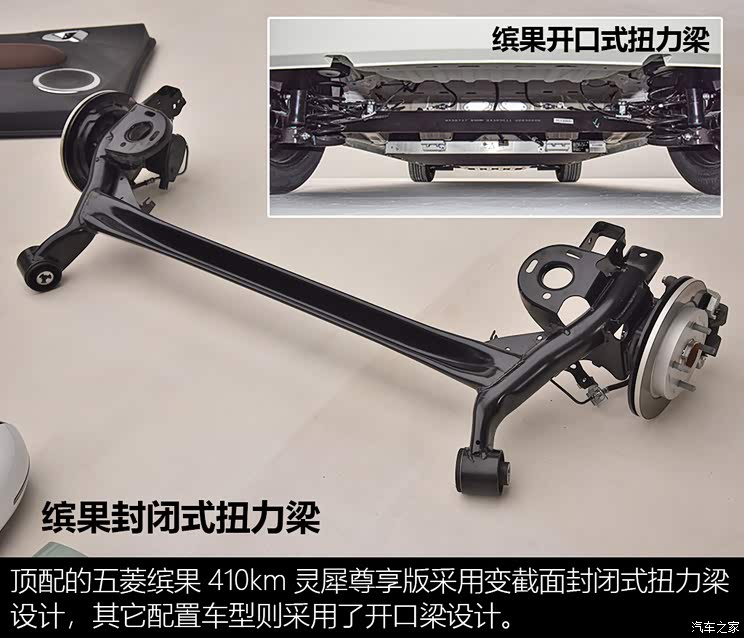

Compared with the open beam, the closed torsion beam with variable cross-section improves the stiffness of the torsion beam by 41% and the bearing capacity accordingly, thus reducing the vibration and improving the ride comfort.

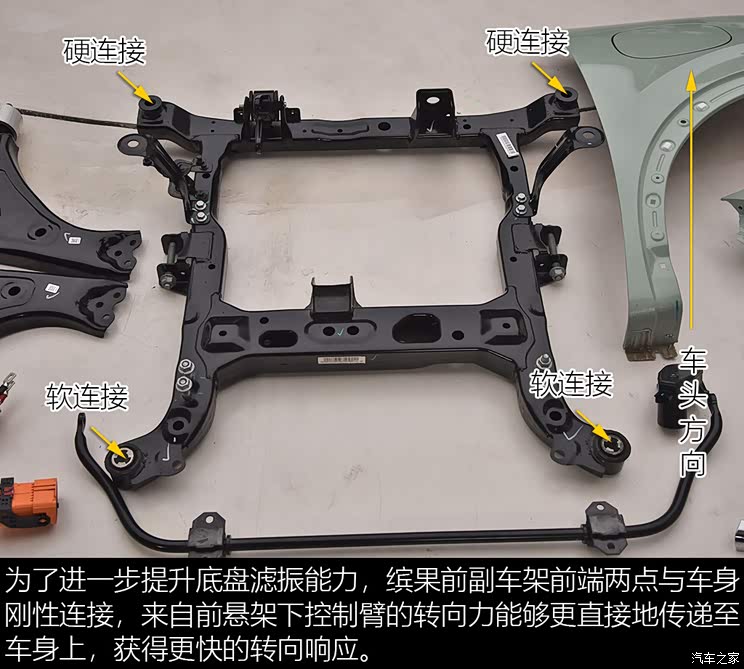

According to the manufacturer’s introduction, Bingo’s chassis adjustment style is tough, that is, to ensure ride comfort on the basis of achieving good support of the car body. Therefore, bingo will be more stable when driving at high speed, giving people more sense of security, and emergency lane-changing vehicles can also provide good support. Binguo 410km Linxi Exclusive Edition uses a brand-new motor with better performance, and its top speed can reach 130km/h, which is higher than that of other models with 100km/h and 120km/h, so it is quite necessary to match a robust chassis.

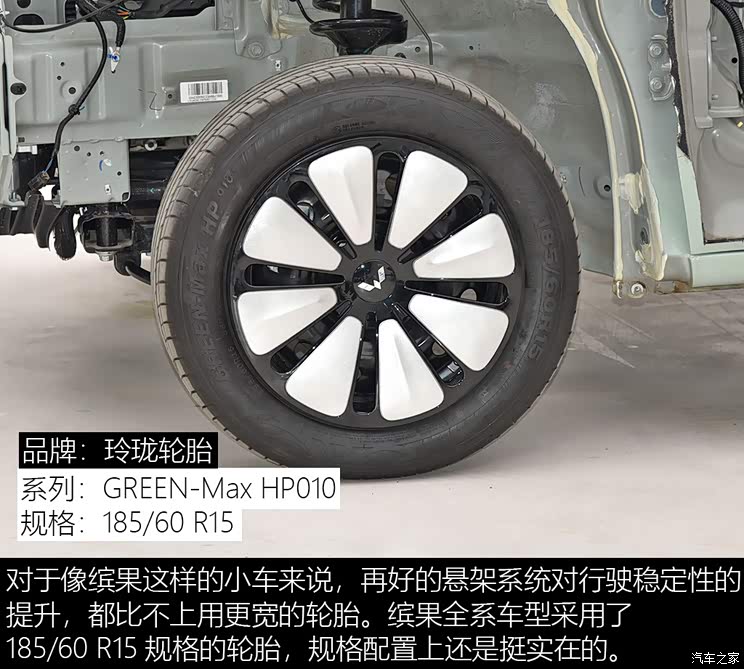

Compared with the 175 and 165 tire widths commonly used in the same class, the wider tread of Bingo standard tires is beneficial to improve tire grip, make the vehicle run more stably, and ensure sufficient braking performance.

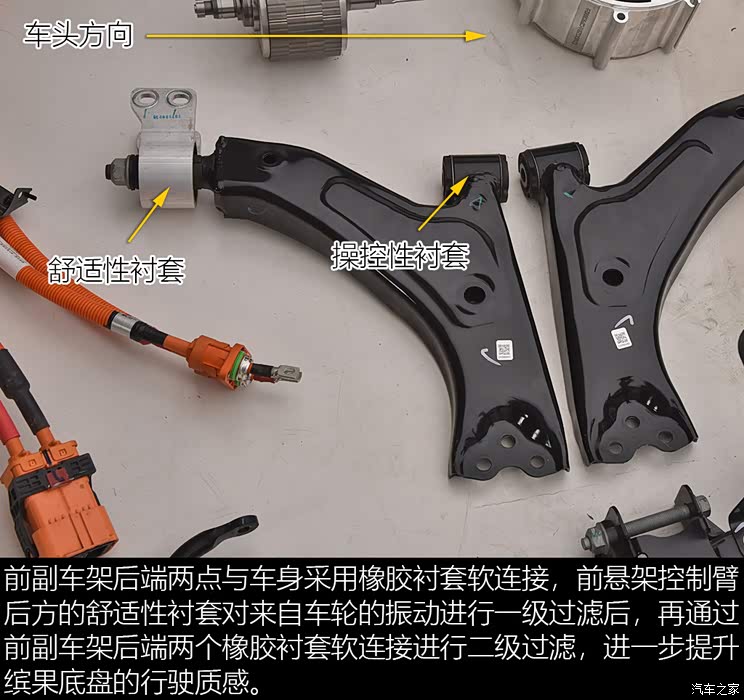

In addition to making great efforts to filter the vibration of the chassis to improve NVH performance, Bingo also made a fuss about the details such as the sealing and sound insulation measures of the passenger compartment. Both the front and rear side doors of Binguo have two complete sealing strips to ensure the tightness of the passenger compartment and avoid the introduction of environmental noise and wind noise into the car. At the same time, the sound-absorbing cotton of the front and rear outer wheel covers of Bingo is made of non-woven fabric +PP+PET+ non-woven fabric, which can effectively absorb the tire noise and the noise generated when the suspension system works.
● Water-cooled flat wire motor and refined battery

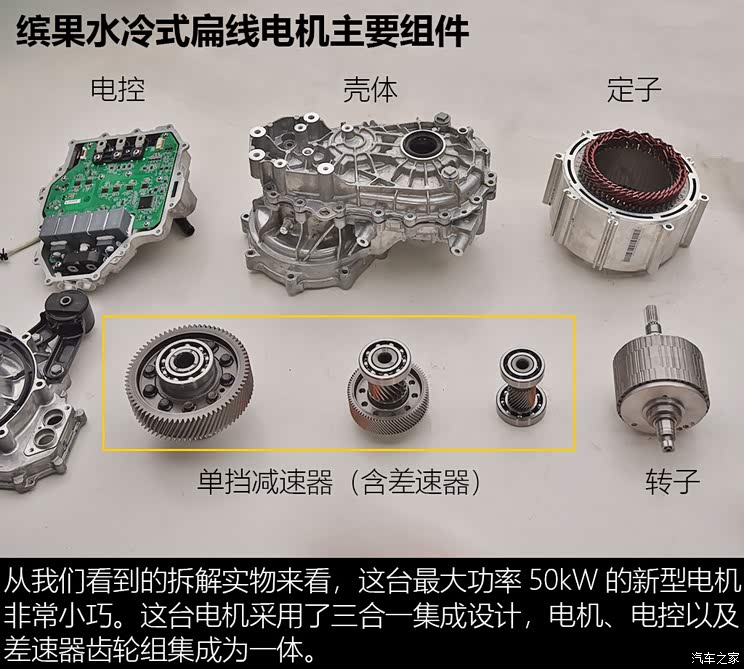

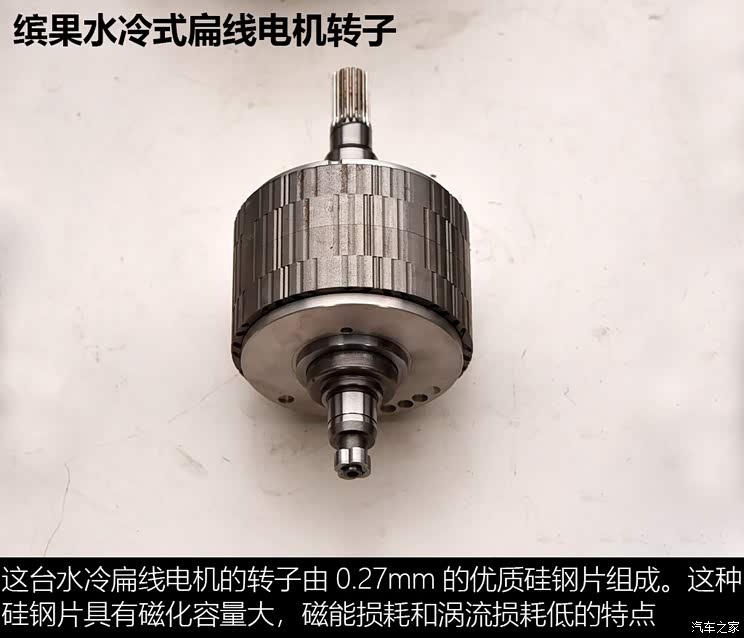

Binguo 410km Lingxi exclusive edition adopts water-cooled flat-wire permanent magnet synchronous motor, which is a three-in-one design and integrates motor, electronic control and differential.
Compared with the round wire motor, the slot fullness of the flat wire motor is increased by 20%, the contact area between the flat wires is larger, the heat conduction is better, and the heat dissipation capacity is stronger. The power density of the flat wire motor is increased by 0.8kW/kg, and the high efficiency range is expanded by 11%, thus making the maximum efficiency of the motor more than 96%.

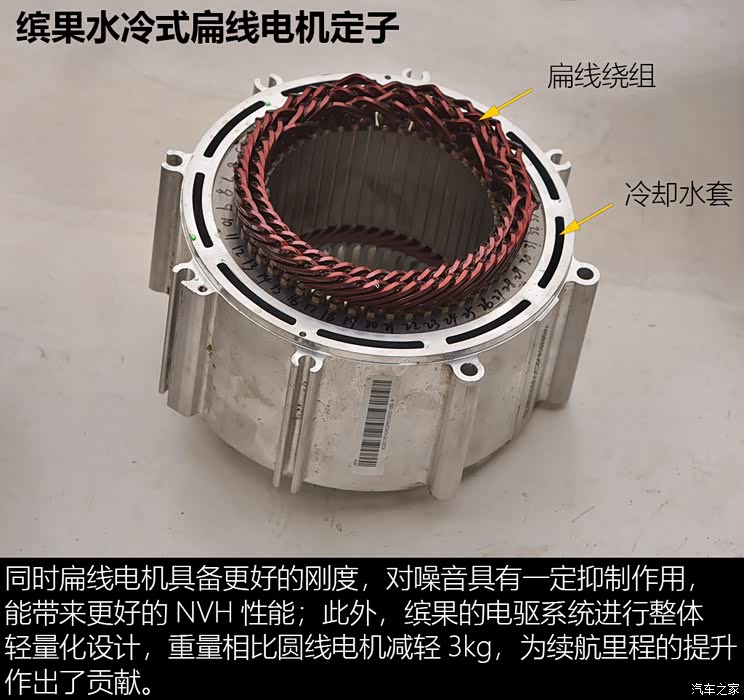

We can see that there is a cooling water jacket on the stator shell of the motor, and the cooling liquid will circulate in the water jacket, taking away the heat generated when the motor works, and improving the continuous high power output performance and durability of the motor.
Wuling’s refined battery should be familiar to all of you. I introduced this battery in detail in the technical article of Wuling Starlight (click to view).
The battery core of Shenlian battery can not catch fire or explode in the acupuncture test; In the shallow needling test (the steel needle penetrates 1/3 of the battery thickness), the battery can still discharge normally; When the battery cell is extruded and deformed by external force up to 40%, it can not catch fire or explode. The safety performance at the cell level is quite eye-catching, which is also the key factor for the high safety of Bingo battery system.

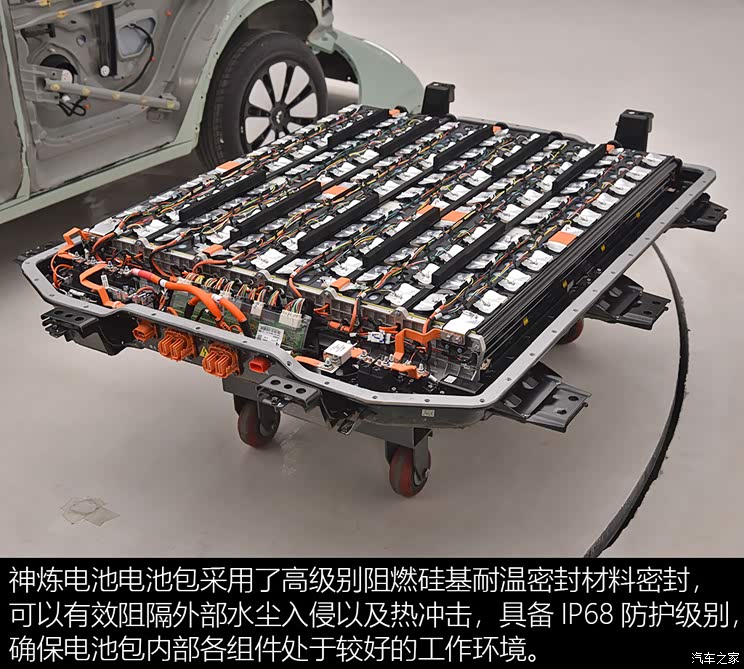

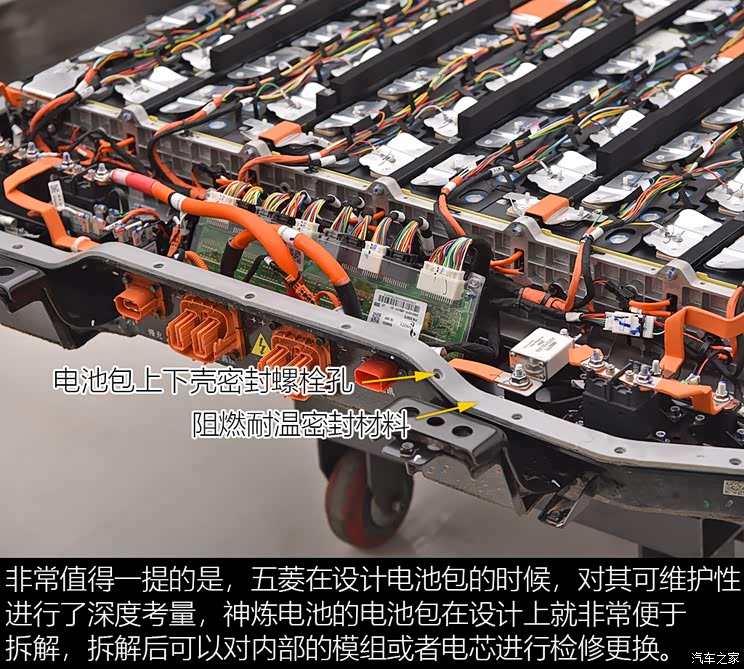

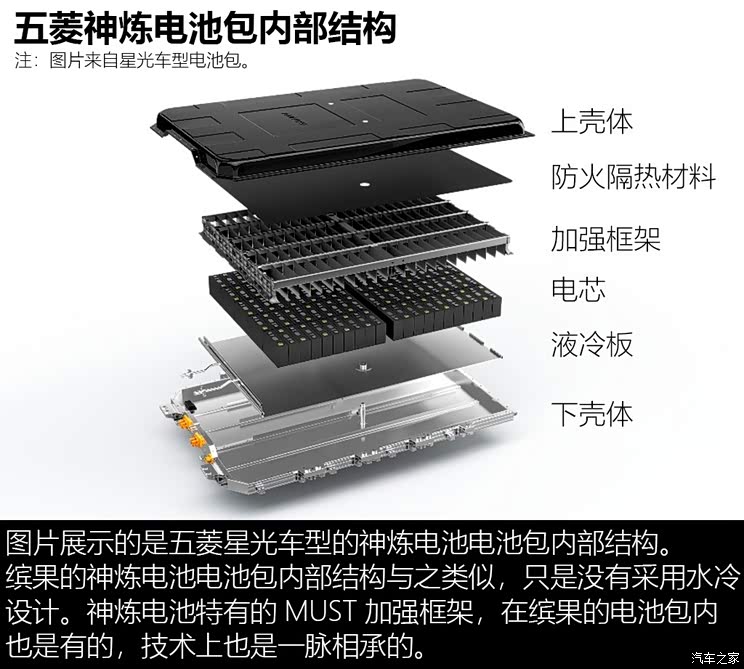

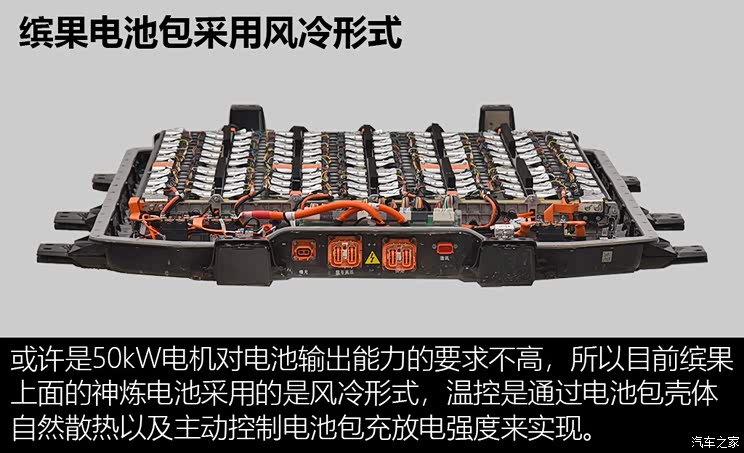

At the level of battery pack, Shenlian battery adopts a structure called MUST, that is, Multifunctional Unitized Structure Technology, a multifunctional integrated battery pack structure technology. The biggest feature of this structure is that the cells are put into the reinforced frame and then installed into the battery pack. This reinforced frame can improve the structural strength of the battery pack by 60%.
Battery packs have suffered a lot in the laboratory, and it is common to go to the mountains and go to sea. The whole package of Shenlian battery has been tested by temperature change test, water immersion test, high temperature acupuncture test, vibration test, bottom dynamic impact test and charge-discharge test.
More exciting videos are all on the car home video platform.
"Needle Punching Test of Shenlian Battery Core"

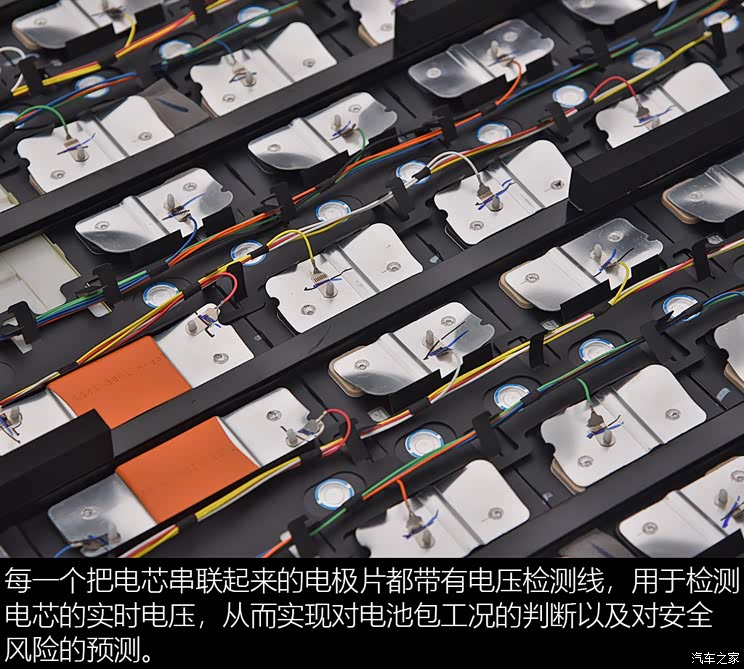

Like mainstream electric vehicles on the market, Bingo’s BMS battery management system also supports Che Yun Intelligent Collaboration. In addition to real-time monitoring of battery status at the vehicle end, all-weather and life-cycle second-level safety inspection will also be carried out in the cloud. When the system detects battery collision, stabbing or overheating, it will actively remind the driver to prevent problems before they happen.
According to the manufacturer, this can reduce the maintenance cost by 90%. At the same time, Wuling has also strengthened the training of battery maintenance in the 4S after-sales service system. I believe that in time, its after-sales service outlets will be fully equipped with power battery maintenance capabilities. Compared with the power battery specialized service that can be seen in the market now, it is obvious that the official after-sales service can reassure consumers.
In this regard, I also asked the engineer at the dismantling site whether there will be batteries in the form of direct cooling or water cooling with refrigerant installed on Bingo. The engineer’s reply is vague and only means "on the road". Perhaps in the future, Bingo with more powerful electric drive system will use direct cooling or liquid cooling battery system with active temperature control function, which is worth looking forward to.
● Full text summary:
Wuling Binguo, as a pure electric small car, has done its homework in terms of cabin space utilization and safety, completely dispelling consumers’ concerns about small space and insecurity of small cars. At the same time, the affordable price of 59,800-88,800 yuan, combined with its fashionable and beautiful shape, is a good choice for buying food scooters in the near future. (Photo/Text/Photo/car home Chang Qinglin)
